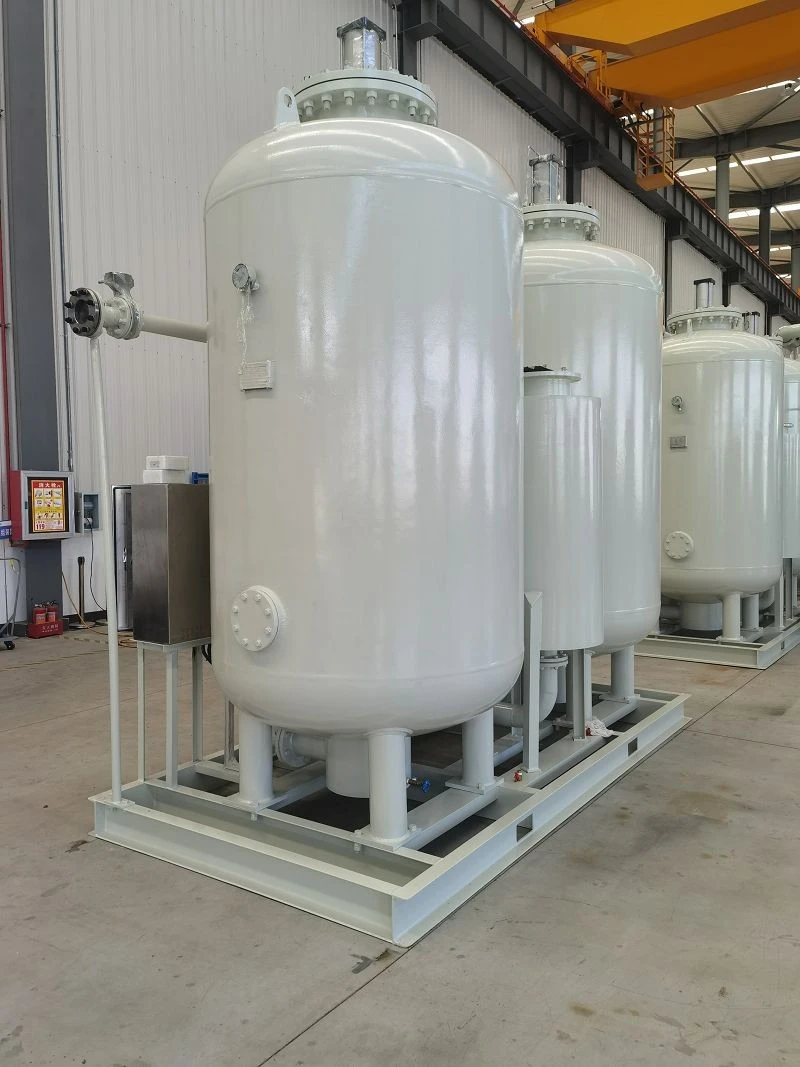

Pressure Swing Adsorption (PSA) equipment
Product Overview
Pressure Swing Adsorption (PSA) equipment operates on the principle that gas molecules exhibit varying adsorption capacities on the surface of an adsorbent at different pressures; by periodically altering the pressure in the adsorption bed, it achieves the separation and purification of gases.

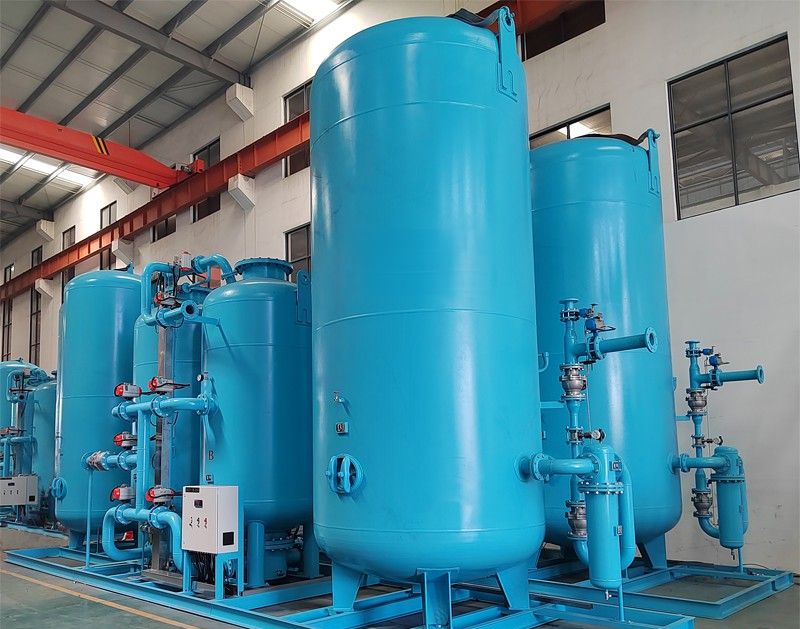

The equipment primarily consists of adsorption tower assemblies, a valve system, a control system, a buffer tank, and piping components. Its core operational process includes multiple stages-adsorption, pressure equalization and reduction, forward venting, reverse venting, purging, pressure equalization and increase, and final pressurization-forming a complete cyclic operation.
Designed for nitrogen and oxygen generation applications, this system can be flexibly configured to meet customer requirements, enabling parallel or serial operation of multiple towers to accommodate gas processing needs of various scales.
Product Specifications
|
Items |
Parameters |
Notes |
|
Gas purity |
O₂: 25%–95%; N₂: 95% – 99.999% |
Customized |
|
Gas flow rate |
1 - 5000 Nm³/h |
Adjustable oxygen/nitrogen flow rate |
|
Work pressure |
0.1 - 3.0 MPa |
Available in standard to high pressure |
|
Control Method |
Fully Automated PLC/DCS |
Intelligent Operation |
|
Number of adsorption towers |
Two-tower or four-tower structure |
Ensure a continuous gas supply |
|
Installation Method |
Skid-mounted / Modular |
Product Advantages
Energy-efficient: Compared to traditional processes such as cryogenic separation, pressure swing adsorption (PSA) systems do not require significant energy to liquefy gases, resulting in an overall energy consumption reduction of 30% to 50% and significantly lower operating costs.
Easy to operate: Equipped with an intelligent PLC control system, it enables fully automatic, unattended operation with one-button start/stop, significantly reducing the workload for operators.
High flexibility: With its modular design, the system can be easily expanded or adjusted at any time to accommodate changes in production scale, meeting the needs of the company at different stages of development.
Addressing Customer Concerns
|
Customer Concerns |
Solutions |
|
Are the operating costs high? |
Low-energy design, with a payback period typically ranging from 1 to 3 years. |
|
Does the equipment take up a lot of space? |
Compact design, saving 30% more space than traditional equipment |
|
How is the after-sales service? |
Lifetime technical support and ample supply of spare parts |
|
Can it adapt to changes in operating conditions? |
Intelligent control system that automatically adapts to fluctuations in air volume and pressure. |
