Hanturbo Technology (Zhejiang) Co., Ltd. is one of the leading manufacturers and suppliers of nitrogen generation unit in China. We specialize in providing high quality custom service with competitive price. If you're going to buy discount nitrogen generation unit, welcome to get quotation from our factory.
Nitrogen Generation Unit use air as their raw material and use the principle of cryogenic distillation to efficiently and reliably produce nitrogen with a purity of 99.9999% or higher.
The primary applications of Nitrogen Generation Unit can be categorized into the following key areas:
1. Semiconductor Industry 2. Food and Pharmaceuticals 3. Chemicals and Oil Gas 4. Metallurgy and Metal Processing 5. Aerospace
Product Specifications
| Items | Range of indicators | Remarks |
| Nitrogen production | 300 Nm³/h – 80,000 Nm³/h | Customizable to meet your needs |
| Nitrogen purity | 99.5% – 99.9999% (2N to 6N) | Purity: Designed according to customer specifications |
| Outlet pressure | 0.01 MPa – 8.0 MPa | Customizable to meet your needs |
| Continuous operating cycle | ≥36 months | A single startup ensures long-term, stable gas supply |
| Control Method | Fully Automatic PLC/DCS Control System | Supports remote monitoring, data logging, and intelligent diagnostics |
Key Features
1. Customers with large-scale, continuous gas consumption needs, such as those in the chemical and metallurgical industries;
2. The product is with high purity and requires no additional purification equipment, meeting the stringent requirements for ultra-high-purity gases in industries such as electronics and semiconductors;
3. Capable of producing liquid nitrogen simultaneously.
Case Show
1. Project Description
A set of Model KDN-15000 Nitrogen Generation Unit for the 45,000-ton-per-year high-purity nickel metal project of Huake Nickel (Indonesia) Co., Ltd. in Indonesia.
2. Product Specification
| Product Name | Output Nm³/h | Purity | Pressure Ex. Cold Box MPa(G) |
| Nitrogen | 15,000 | ≥99.99% N2 | 0.65 |
| Liquid Nitrogen | 100 L/h | ≥99.99% N2 | 0.65 |
Note: Nm3/h refers to the volumetric flow rate at 0.1013 MPa (A) and 0℃.
3. Performance Indicators
3.1 Operating Cycle 3 years
(Interval between 2 major heating processes)
3.2 Heating Time 24 hours
3.3 Operational Flexibility 75% ~ 105%
3.4 Startup Time 30 hours
(From expander startup to the production of qualified products)
3.5 Annual Operating Hours 8760 h/y (365 d x 24 h/d)
3.6 Design Life 20 years
4. Process Flow Description
This Nitrogen Generation Unit adopts a dual-tower nitrogen production process combining molecular sieve adsorption & purification and turbine expansion refrigeration. This is to ensure the long-term stable and reliable operation of the equipment. The design principle is to achieve energy conservation and facilitate operation and maintenance. The entire unit includes: air filtration and compression system, air pre-cooling system, molecular sieve purification system, turbine expansion system, fractionating column system, liquid product backup system, instrumentation and electrical control system, etc.

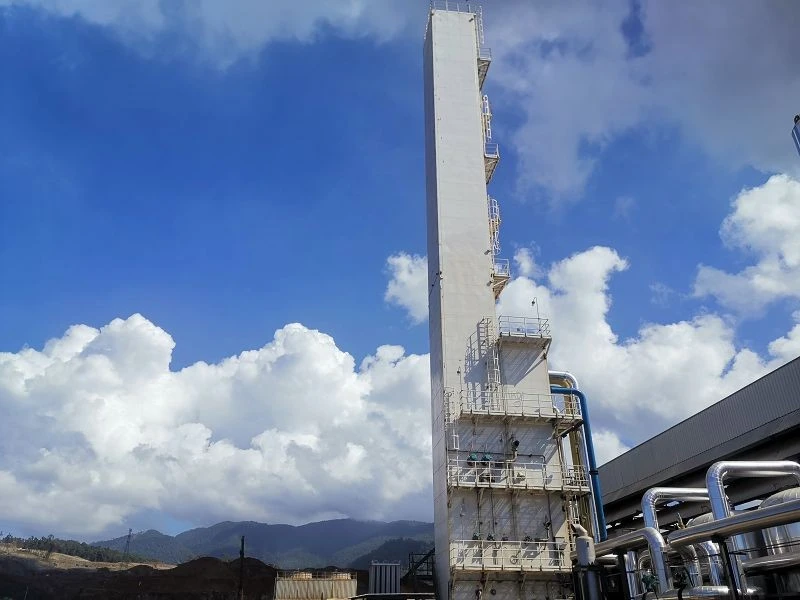

Site Photos
