Hanturbo Technology (Zhejiang) Co., Ltd. is one of the leading manufacturers and suppliers of rare gas extraction equipment in China. We specialize in providing high quality custom service with competitive price. If you're going to buy discount rare gas extraction equipment, welcome to get quotation from our factory.

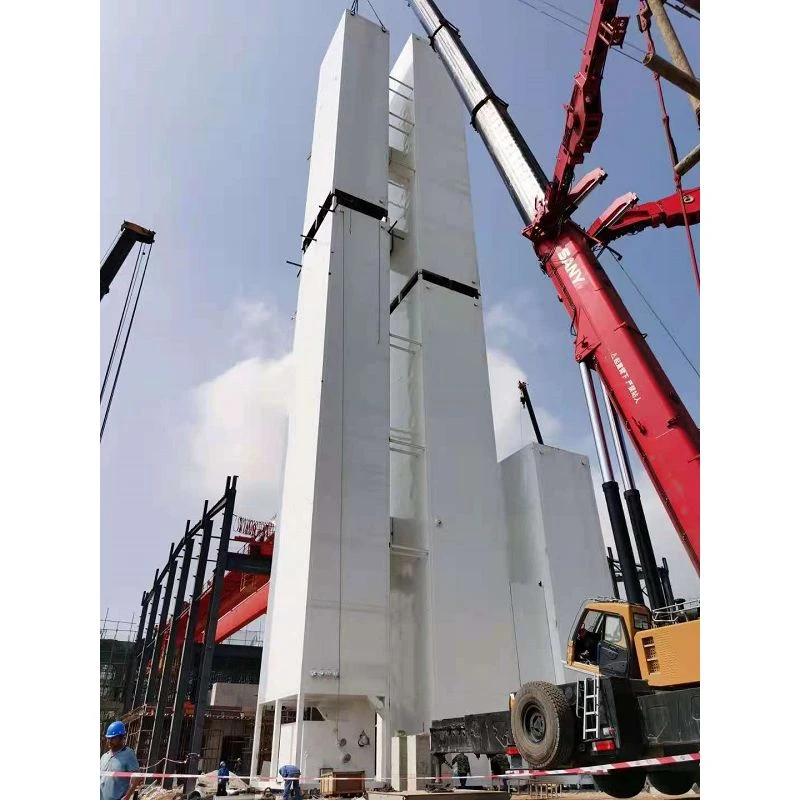

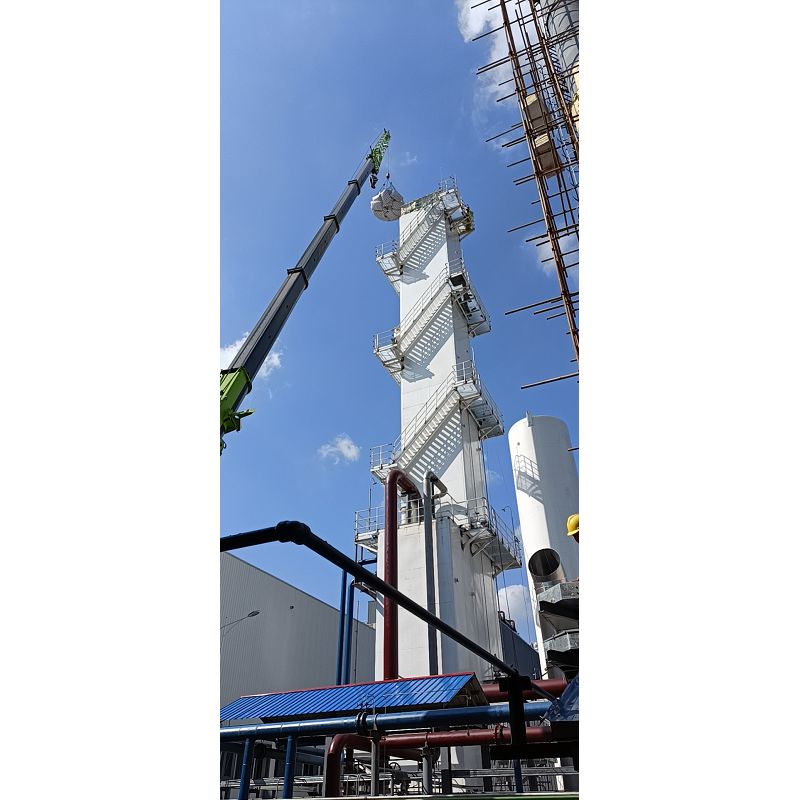

The rare gas extraction equipment is a core device specially designed for separating and purifying rare gases such as helium, neon, argon, krypton, and xenon from air, natural gas, or industrial off-gases. This equipment adopts advanced low-temperature distillation technology, with purity reaching above 99.9999%, high recovery rate, and low energy consumption, making it an ideal choice for the development and utilization of rare gas resources.
Product Details
The rare gas extraction equipment is a high-end equipment in the field of modern industrial gas separation, specifically designed for the industrial extraction of rare gases such as helium (He), neon (Ne), argon (Ar), krypton (Kr), and xenon (Xe). The equipment is based on the optimized combination of various technologies such as low-temperature distillation and catalytic purification, and can efficiently extract high-purity rare gases from liquefied air, natural gas BOG (boil-off gas), ammonia synthesis off-gases, or recovered gases from the electronics industry. The processing capacity of a single unit can reach 100~10000Nm³/h, and the product purity meets the stringent standards of high-end fields such as semiconductors, aerospace, and medical.
Technical Advantages
High extraction rate: Helium extraction rate ≥ 95%, neon / argon / krypton / xenon extraction rate ≥ 90%, high resource utilization
Ultra-purity: Product purity can reach 6N~7N level (99.9999%~99.99999%), meeting the requirements of electronic-grade applications
Low energy consumption operation: Optimized heat exchange network and refrigeration cycle system, unit energy consumption reduced by 20%~30% compared to traditional equipment
Intelligent control: DCS full automatic control, key parameters automatically adjusted, achieving unattended operation
Modular design: Can be flexibly configured according to the gas source conditions, convenient for expansion and upgrade
Environmental Protection and Energy Saving: Tail gas recycling, no wastewater or waste gas discharge, in line with green manufacturing standards
Quality Assurance
Core Components
Key equipment such as low-temperature pumps, expanders, and plate heat exchangers use well-known international brands or high-quality domestic substitutes
01
Material Standards
Parts in contact with the medium are made of 304/316L stainless steel or aluminum alloy, and special low-temperature steel is used in the low-temperature section
02
Precise Manufacturing
The cold box pipes use vacuum brazed aluminum foil heat exchangers, with high heat exchange efficiency and low leakage rate
03
Strict inspection
The whole set of equipment undergoes cold state performance testing, helium mass spectrometry leak detection, and thermal insulation performance testing before leaving the factory.
04
Standard certification
Compliant with GB/T 18442, ASME, PED and other domestic and international pressure vessel and low-temperature equipment standards.
05
Service Commitment
We have a technological research and development center in collaboration with Zhejiang University, with EPC general contracting capabilities from process package development, engineering design, equipment manufacturing to debugging and operation. We provide technical support and spare parts supply to ensure the long-term stable operation of your rare gas production facility.
